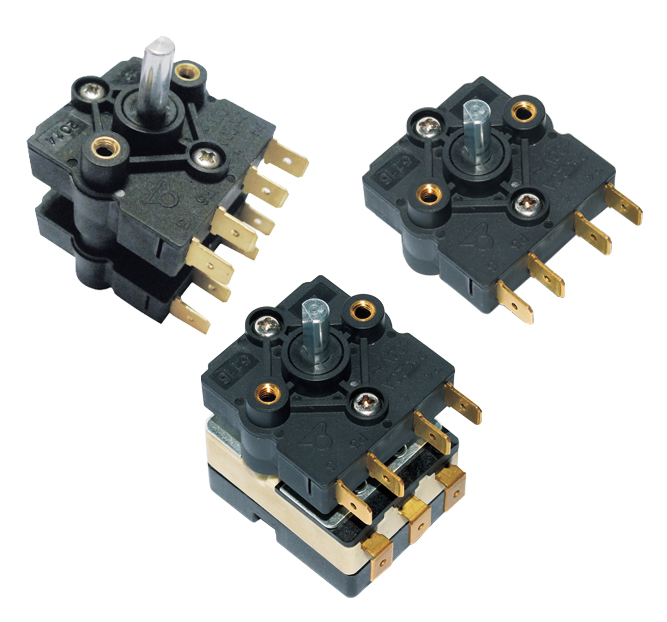

Applications: These on-off switches are designed to be added on thermostat shafts. They provide off position when the thermostat shaft is at the minimum position. They are available in single pole contact, two pole (one level) and three pole or four pole contacts (two levels)
Installation: on thermostats with 6mm shaft and 4.6mm flat, mounting by two M4 screws 28mm distance. Shaft length of thermostat that receives this switch must be 12mm maximum..
Shaft lengths available:: 11.5; 15; 23mm
Shafts: Galvanized steel
Operation diagram: the contacts are open between 0° and 30 +/ -5° angular and closed between this value and 310°
Electrical rating: 20A 250/ 400V res., 6000 cycles
Contact clearance: between 0 and 20° angle, the contact spacing is greater than 3mm
Temperature: 85°C
Case Material: PA66, UL94 VO
Connection: 6.35 × 0.8 tabs. Screw terminals available (MOQ)
Options: change of flat position, different contact opening or closing positions
